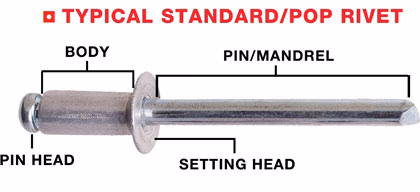

When does one select a Multi grip rivet over an open-end rivet? What is the difference? Does one rivet type have an advantage over the other? These are some of the questions customers ask when seeking to understand multigrip rivets compared to open end rivets. There are numerous rivet types on the market and selecting the right rivet can be a little complicated. In this rivet article blog we shall review two of the most popular rivet types on the market and look into the pros and cons of multi-grip rivets & open-end rivet (commonly known as blind rivet or pop rivets). Before we begin the blog, lets cover the basics. What is a rivet? A rivet is a fastener that is composed of two components, a metal tube or the body & pin, commomly known as the mandrel. The pin is normally longer than the tube and designed to be pulled up through the tube whilst enlarging it in the process. As the body expands it secures the material between its two ends. At a predetermined point, the pin used to pull up the body will break and drop off. For more information check the rivet blog Rivets are great go-to fasteners for the joining of numerous materials including thin sheet metals, plastics, fibreglass, composites and more. And some rivets are better than others. The flexible material grip range of Multi-Grip rivets makes them the ideal choice when working with materials of varying depths. Instead of using a few different size open-end standard rivets, you can use one size multi-grip rivet; resulting in considerable cost and time savings. Multi-Grip rivets also reduces the chance of using an incorrect rivet. Either way using a rivet over another fastener type has many advantages. Some of the key benefits associated with rivets include: An open-end rivet is the default general purpose rivet that most people envision when we think of blind rivets. This rivet is the go-to type for fastening materials together. They are a viable choice for just about anything that can be riveted. One key benefit of an open-end rivet is that they are generally less expensive than multi-grip rivets. Additionally, ordering them is a straightforward process—if certain grips are needed, the corresponding rivets are ordered to fit. However, any variation outside the given material depth can compromise the joint. In other words, open-end rivet selction must be correct to work well. Rivets with too much grip might require extra work for a proper installation—and even then, the resulting strength may be reduced. For projects that have a wide range of material depths you will need a comprehensive range of open-end rivets. Inventory management becomes a challenge, and if you discover an area for which you don’t have the right-sized grip on hand, delays can occur.  Multi grip rivets are the superior alternative to most other general purpose rivets because as the name suggests they are flexible with material depth, making them the efficient rivet option. Their versatility means they fit a wider range of material grip so that if the application depth differs the rivet can accommodate the change. Open-end rivets aren’t flexible with material grip range. Multi-grip rivets are ideal for projects where the materials’ depth varies, this can sometimes occur over a short distance. They are also better at filling oversized holes for a stronger joint. Multi-grip rivets are often used for the following applications: automotive, domestic appliances, electronics, electrical equipment, light industrial, and HVAC. The versatility of multi-grip rivets is unmatched. They typically cover three grip ranges, so as the thickness of a work piece begins to vary, you won’t be scrambling to find another rivet. These rivets expand radially, resulting in a greater hole filling capacity with a neater finish compared to open end pop rivets. Because projects won’t require so many specific sizes of standard rivets, ordering becomes simpler, and you are less likely to run out of a certain size. Also, aesthetic consistency improves because an area isn’t populated with several different types of rivets. If your application has several different rivets populating a small area, the resulting hodgepodge may detract from the product’s appearance, particularly with consumer goods. Multi-grip rivets offer a uniform look. For many projects, the multi-grip rivets offers flexibility and better resource management that you often don’t experience with standard-grip rivets. Moreover, benefits such as stronger fit and better durability are added bonuses that improve performance and profitability in the short and long term. Multi-grip rivets work a little differently to a standard rivet, as there is an internal mechanism that holds a small portion of the pin (mandrel) inside the rivet's body. This creates an additional layer of material that assists in increasing the multi-grip's rivet strength over other standard rivets like open end rivets and sealed rivets.  When installing the rivet body gets compressed, which in turn creates 1, 2 or 3 bulges depending on the material depth with a large bearing surface that avoids rivet pull-out. Multi-grip rivets work similar to Allok® rivets, Orlok® rivets or Hemlok rivets. At the conclusion of this rivet type blog, it is evident that multi grip rivets offer superior fastening capabilities compared to open end rivets. Multi-Grip rivets are a strong & highly flexible option due to their extended material grip range. The multi-grip is the strongest standard rivet choice, for many people this rivet helps reduce stock options as one multi-grip rivet replaces a three different grip size open end rivets. This assists to reduce cost and minimise operator errors. Also, a multi-grip rivet, compared to an open-end rivet of the same size & material, provides greater shear and tensile strength. Seeking assistance to select the correct rivet type? Please don’t hesitate to contact us or call 02 9755 3747. Aerobolt is the leading wholesaler of  standard rivets , structural  rivets, Huck bolts, nutserts, rivnuts, adhesives & power tools, like nutsert tools and rivet guns including some popular cordless options. Proudly, we are Australia's #1 Huck Distributor of genuine Huck bolts and structural rivets plus the sale, service and hire of Huck guns and hydraulic power rigs. Committed to providing a total supply solution with an award-winning customer service focus, your one-stop shop for technical know-how, supply of goods & tool hire through to the servicing of your equipment. Copyright © 2024 Aerobolt Australia Pty Ltd. All rights reserved. Emergency LED bulkhead lights with IP65 rating are durable and suitable for outdoor use. The monthly auto-self test function ensures that the lights are always in working order. These lights are designed for ceiling mounted installation, making them ideal for use in corridors, stairwells, and other areas where emergency lighting may be needed. The built-in 7.4V LiFePO4 battery provides reliable backup power in the event of a power outage. These lights are a practical and reliable solution for emergency lighting needs. Emergency Bulkhead,Emergency Bulkhead Light,Led Emergency Bulkhead,Led Bulkhead Emergency Light JIALINGHANG ELECTRONIC CO.,LTD. , https://www.jlhemergencylighting.com
Multi grip rivets Vs Open end rivets.
What is an Open-End Rivet?
What is a Multi-Grip Pop Rivet?
Multi-grip rivets offer 3 main benefits.
Pros and Cons of Multi-Grip Rivets.

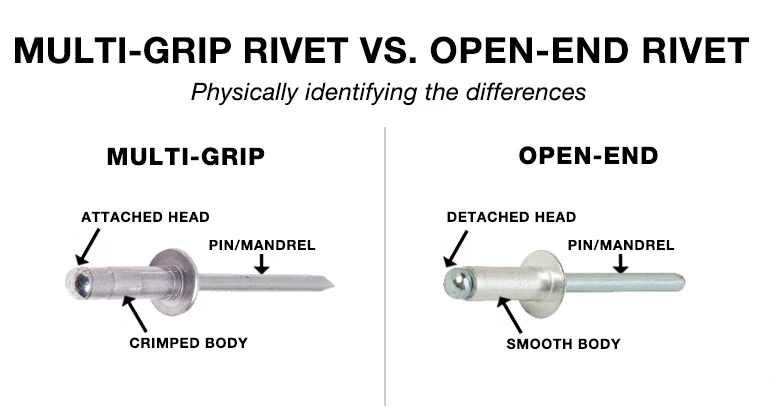

How to identify a multi-grip rivet?
How do multi-grip rivets work?Â
Multi-grip rivets V’s Open-end standard rivets summary.
